DR.LIGHT 6A Single Pole Circuit Breaker C Curve | Mr Panda

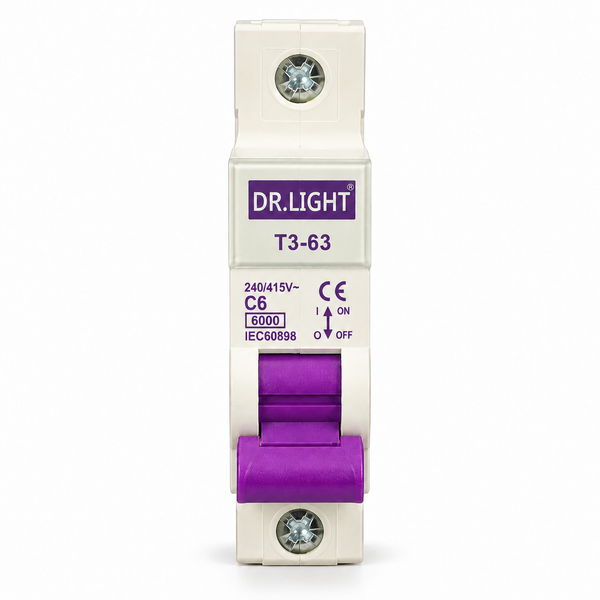

The DR.LIGHT T3-63 Miniature Circuit Breaker is designed to protect electrical circuits against overloads and short circuits. Featuring a 6A current rating, C-curve tripping characteristic and a purple ON/OFF switch, it is intended for installation in compatible distribution boards.

Key Features

6A rated current with C-curve tripping characteristic.

Single pole design with a compact profile.

Marked voltage rating of 240/415V AC.

Marked short-circuit breaking capacity of 6000A (6kA).

Purple operating lever with clearly marked ON and OFF positions.

DIN rail mounting clip for compatible installations.

Benefits

Helps protect correctly rated wiring and circuits against excessive current.

Resettable operation allows the circuit to be restored once the cause of a trip has been resolved.

Compact design helps save space inside a compatible distribution board.

What’s Included

1 x DR.LIGHT T3-63 6A Single Pole Miniature Circuit Breaker

How to Use

Have a qualified electrician select and install the breaker in a compatible distribution board. If the breaker trips, the cause must be checked and resolved before resetting it.

Compatibility / Applications

For compatible DIN rail distribution boards and circuits requiring a 6A C-curve miniature circuit breaker. Suitability must be confirmed according to the circuit wiring, connected load and installation requirements.

Care & Maintenance

Keep the distribution board dry and free from dust. Have a qualified electrician inspect the breaker and connections periodically. Replace the breaker if it is damaged or shows signs of overheating.

Specifications

Brand: DR.LIGHT
Model: T3-63
Product Type: Miniature Circuit Breaker (MCB)
Number of Poles: Single Pole
Rated Current: 6A
Tripping Curve: C Curve
Marked Voltage Rating: 240/415V AC
Marked Breaking Capacity: 6000A / 6kA
Standard Marking: IEC 60898
Mounting Type: DIN Rail
Colour: White Housing with Purple Switch
Quantity: 1 Piece

Safety Information

Installation must be carried out by a qualified electrician with the power supply isolated. Use only where the breaker’s ratings suit the installation. This MCB does not provide earth-leakage protection.

Frequently Asked Questions

What does C6 mean?

C indicates the tripping curve, while 6 indicates the breaker’s 6A rated current.

Can it be reset after tripping?

Yes, once the fault has been identified and resolved.

Is this an earth-leakage breaker?

No. It is a miniature circuit breaker for overload and short-circuit protection.
