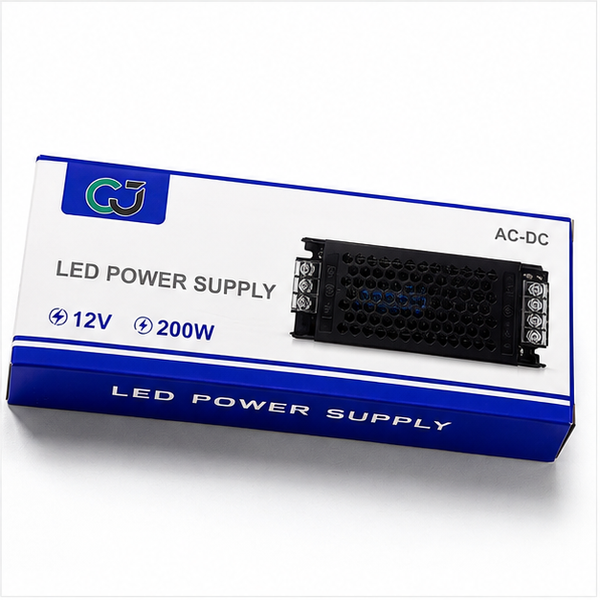

CJ 12V 200W AC-DC LED Power Supply

Power your 12V LED lighting with this compact CJ 200W AC-to-DC power supply. Its enclosed metal housing and screw-terminal connections make it suitable for fixed indoor LED installations.

Key Features

• Converts AC mains power to 12V DC
• Maximum rated output: 200W
• Approximate maximum output current: 16.7A
• Ventilated metal housing for heat dissipation
• Screw terminals for secure wiring
• Slim design for discreet installation
• Suitable for compatible 12V LED products

Benefits

• Provides stable power for larger LED lighting installations
• Supports multiple compatible LED strips or modules within the total load limit
• Protective enclosure helps shield internal components
• Terminal connections simplify permanent installations

What’s Included

• 1 × CJ 12V 200W LED Power Supply

How to Use

• Confirm that the connected lighting requires 12V DC.
• Switch off the mains electricity before installation.
• Connect the AC input wires to the correctly marked input terminals.
• Connect the LED positive and negative wires to the corresponding DC output terminals.
• Check all connections before restoring power.
• Keep the total connected load below the rated capacity.

Compatibility / Applications

• 12V LED strip lights
• LED modules
• Display and cabinet lighting
• Signage lighting
• Decorative lighting
• Other compatible 12V DC devices

Care & Maintenance

• Install in a dry, ventilated location.
• Keep the ventilation openings clear.
• Remove dust using a dry, soft brush.
• Do not expose the unit to water or excessive moisture.
• Inspect the wiring and terminals periodically.

Specifications

• Brand: CJ
• Product type: LED power supply
• Conversion type: AC to DC
• Output voltage: 12V DC
• Maximum rated power: 200W
• Approximate maximum output current: 16.7A
• Connection type: Screw terminals
• Housing: Ventilated metal enclosure
• Colour: Black

Safety Information

• Installation should be completed by a suitably qualified person.
• Disconnect the mains supply before wiring or maintenance.
• Do not exceed the 200W rated output.
• Allow additional capacity instead of operating continuously at the maximum load.
• Verify the input-voltage markings on the unit before connection.
• Not intended for wet locations unless installed inside a suitable protective enclosure.
• Do not cover the unit or restrict airflow.

FAQs

• What voltage LEDs can it power?
  • It is intended for compatible 12V DC LED products.
• What is its maximum output?
  • The rated maximum is 200W, equivalent to approximately 16.7A at 12V.
• Can it power several LED strips?
  • Yes, provided their combined power requirement remains safely below the power supply’s rated capacity.
• Is it waterproof?
  • The pictured unit is not presented as waterproof and should be installed in a dry, protected area.
• Can I connect it directly to mains electricity?
  • It accepts an AC input, but mains wiring should be handled by a suitably qualified installer.
