DR.LIGHT 50A Single-Pole Circuit Breaker C50 | Mr Panda

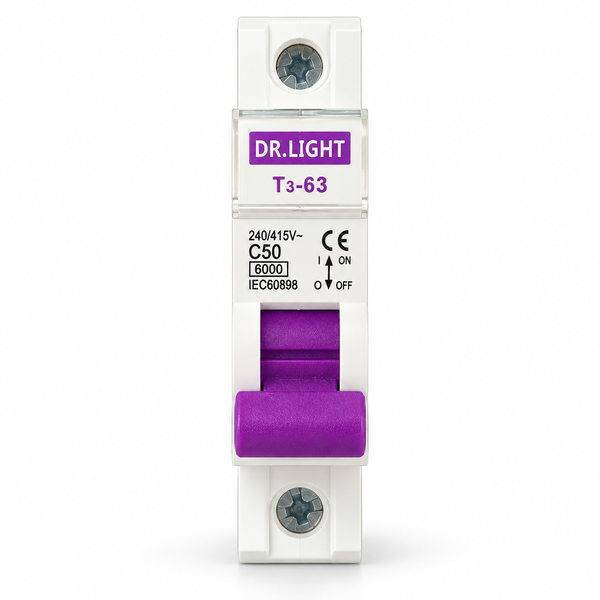

The DR.LIGHT T3-63 miniature circuit breaker is designed to protect electrical circuits against overloads and short circuits. Featuring a 50A rating, C-curve tripping characteristic and a purple operating lever, this single-pole breaker is suitable for compatible distribution board installations.

Key Features

50A rated current with C-curve tripping characteristic.

Single-pole design with a compact housing.

Marked operating voltage of 240/415V AC.

Marked short-circuit breaking capacity of 6000A / 6kA.

Purple operating lever with clearly marked ON and OFF positions.

DIN rail mounting design.

Benefits

Helps protect correctly matched electrical wiring and circuits against excessive current.

Allows manual switching of the connected circuit.

Compact construction fits compatible distribution boards.

What’s Included

1 x DR.LIGHT T3-63 50A Single-Pole Miniature Circuit Breaker

How to Use

Have a qualified electrician select and install the breaker in a compatible distribution board. The breaker rating must match the circuit design, cable capacity and connected load. If it trips, identify and resolve the cause before resetting.

Compatibility / Applications

For compatible AC distribution boards requiring a 50A single-pole C-curve miniature circuit breaker. Suitability must be confirmed by a qualified electrician.

Care & Maintenance

Keep the distribution board dry and free from dust. Have an electrician inspect the breaker if there are signs of overheating, damage or repeated tripping.

Specifications

Brand: DR.LIGHT
Model: T3-63
Product Type: Miniature Circuit Breaker
Number of Poles: Single Pole
Rated Current: 50A
Trip Curve: C
Voltage Marking: 240/415V AC
Breaking Capacity Marking: 6000A / 6kA
Standard Marking: IEC 60898
Mounting Type: DIN Rail
Colour: White housing with purple lever

Safety Information

Installation and servicing must be performed by a qualified electrician. Isolate the power supply before electrical work. Do not exceed the rated current or use the breaker with unsuitable wiring. This circuit breaker does not replace an earth-leakage protection device.

Frequently Asked Questions

What does C50 mean?

C indicates the tripping curve, and 50 indicates the rated current of 50 amps.

Does this provide earth-leakage protection?

No. It provides overload and short-circuit protection. Earth-leakage protection requires a suitable separate device.

Can I replace a lower-rated breaker with this 50A breaker?

Only if a qualified electrician confirms that the wiring and circuit are suitable for the higher rating.
