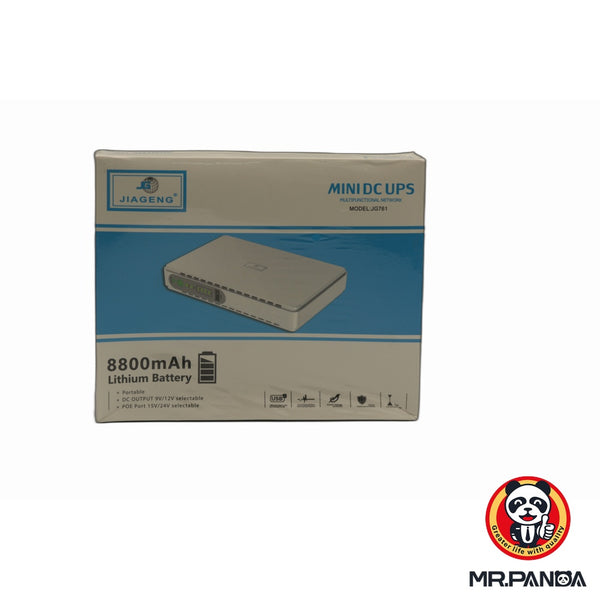

Jiageng JG761 Mini DC UPS

      Key Specifications & Features

• Battery Capacity: 8800mAh (32.56Wh) high-capacity lithium-ion battery.
• Output Options:
  • DC Ports: Selectable 9V or 12V DC output.
  • PoE Port: Power over Ethernet (PoE) support with selectable 15V or 24V.
  • USB Port: One 5V USB output for charging mobile phones or small digital devices.
• Runtime: Typically provides 3 to 8 hours of backup time, depending on the power consumption of the connected devices.
• Protection: Includes smart chip control for over-charge, over-discharge, and short-circuit protection.
• Transition: Features "zero transition" technology, meaning your internet won't disconnect when the power source switches from mains to battery.

       Setup Guide

1. Connect to Power: Plug the UPS into a standard wall outlet using the provided AC mains cable.
2. Select Voltage: Before plugging in your devices, check the voltage requirements on their original power adapters and set the selector switch on the UPS accordingly (e.g., 12V for most routers).
3. Connect Devices: Use the included DC cables (often a "Y-splitter" to power both a router and ONT simultaneously) to connect your hardware to the DC output ports.
4. Power On: Press and hold the power button for 2–3 seconds until the LED indicators light up.
