ÖZTÜRK 63A 3-Pole DC Circuit Breaker 1000V | Mr Panda

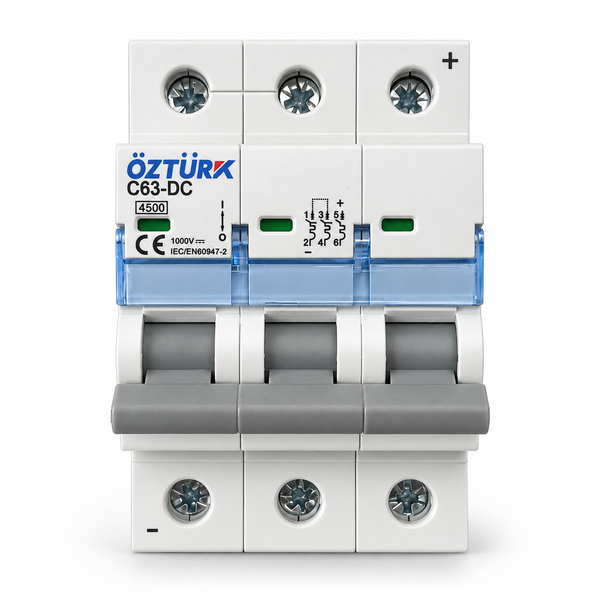

The ÖZTÜRK C63-DC circuit breaker provides protection for compatible direct-current electrical circuits. Its three-pole design features linked grey operating handles, screw terminals and rear mounting clips for installation in a suitable electrical enclosure.

Key Features

63A current rating with C-curve marking.

Three-pole design with linked operating handles.

DC voltage marking of 1000V.

4500A breaking capacity marked on the housing.

Screw terminals with positive and negative polarity markings.

DIN rail mounting design.

Benefits

Helps protect correctly specified DC circuits against overloads and short circuits. The linked handles allow coordinated manual operation, while the compact modular housing suits compatible distribution enclosures.

What’s Included

1 x ÖZTÜRK C63-DC 3-Pole DC Circuit Breaker

How to Use

Have a qualified electrician select and install the breaker according to the manufacturer’s wiring diagram. Correct polarity, pole connections and system ratings must be confirmed before energising the circuit.

Compatibility / Applications

For compatible DC electrical installations. Suitability for solar PV, battery or other DC systems must be confirmed against the manufacturer’s specifications and the installation requirements.

Care & Maintenance

Keep the breaker dry and protected inside a suitable enclosure. Have a qualified electrician inspect terminal connections and check for damage, overheating or discolouration. Investigate the cause of tripping before resetting.

Specifications

Brand: ÖZTÜRK
Front marking: C63-DC
Rated current: 63A
Trip curve: C
Number of poles: 3
Current type: DC
Operational voltage marking: Ue = 250–1000V DC
Breaking capacity marking: Icu = 4500A
Insulation voltage marking: Ui = 1000V
Impulse withstand voltage marking: Uimp = 4kV
Standard marking: IEC/EN 60947-2
Terminal torque marking: 2.5Nm
Wire stripping length marking: 13mm
Mounting type: DIN rail
Colour: White housing with grey handles and translucent blue front strip

Safety Information

Installation must be performed by a qualified electrician. Isolate all power sources before installation or maintenance. Follow the marked polarity and manufacturer’s connection diagram. The permitted operating voltage depends on the specified pole configuration. Do not exceed the applicable ratings.

Frequently Asked Questions

Is this an AC circuit breaker?

The product is marked for DC use. AC suitability must not be assumed.

Can it be used in a solar installation?

A qualified electrician must confirm compatibility with the solar system’s voltage, current, fault level and required wiring configuration.

Does it have three separate switches?

It has three linked operating handles for coordinated operation.
