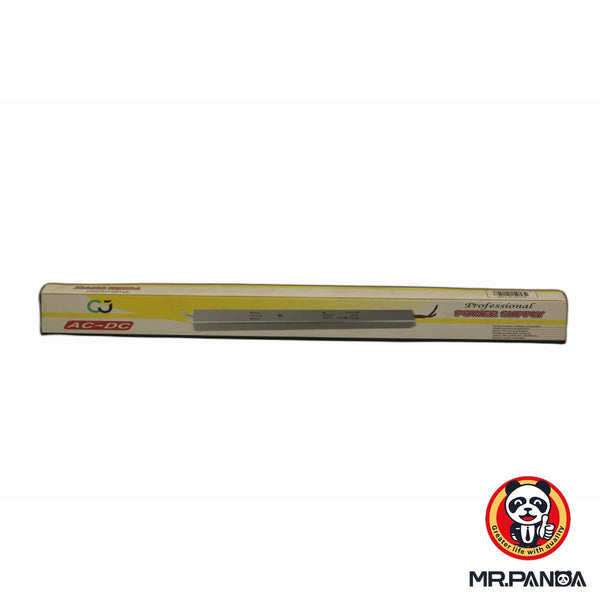

CJ Professional 12V 5A 60W DC Power Supply

Power your compatible 12V DC equipment with this compact CJ Professional AC-to-DC Power Supply. It delivers up to 5A and 60W, with built-in protection features and an LED output indicator.

Key Features

• Converts 100–240V AC power to 12V DC
• Maximum output current: 5A
• Maximum rated power: 60W
• Output over-voltage protection
• Over-current protection
• Short-circuit protection
• Surge-protected output
• Built-in output LED indicator
• Ventilated metal enclosure for heat dissipation
• Screw terminals for wired installation

Benefits

• Provides a stable 12V DC power source
• Supports a wide range of compatible low-voltage equipment
• Multiple protection features help protect the power supply and connected devices
• Compact design suits installations where space is limited
• LED indicator makes it easy to confirm that output power is active

What’s Included

• CJ Professional 12V 5A 60W Power Supply

How to Use

• Confirm that the connected device requires 12V DC and does not exceed 5A or 60W.
• Disconnect the mains electricity before installation.
• Connect the AC input wires to the correctly marked input terminals.
• Connect the device to the correctly marked positive and negative DC output terminals.
• Check that all connections are secure and correctly insulated.
• Restore power and confirm operation using the LED output indicator.

Compatibility / Applications

Suitable for compatible 12V DC equipment requiring no more than 5A or 60W, including:

• LED lighting installations
• CCTV equipment
• Access-control systems
• Electronic projects
• Other compatible 12V DC devices

Always confirm the voltage, current requirement and terminal polarity before connecting equipment.

Care & Maintenance

• Keep the power supply clean, dry and well ventilated.
• Do not cover or obstruct the ventilation holes.
• Periodically inspect the wiring and terminals for looseness or damage.
• Disconnect the power before cleaning or carrying out maintenance.
• Do not use the unit if its enclosure, terminals or wiring are damaged.

Specifications

• Brand: CJ Professional
• Product type: AC-to-DC switching power supply
• Input: 100–240V AC, 50/60Hz
• Output voltage: 12V DC
• Maximum output current: 5A
• Maximum rated power: 60W
• Output indicator: LED
• Enclosure: Ventilated metal casing
• Connection type: Screw terminals
• Protection: Output over-voltage, over-current, short-circuit and surge protection

Safety Information

• Installation should be completed by a suitably qualified person.
• The terminal area carries hazardous mains voltage when connected.
• Always isolate the mains supply before installation or maintenance.
• Install the unit inside a suitable protective enclosure.
• Keep away from water, moisture and flammable materials.
• Ensure adequate ventilation around the unit.
• Do not exceed the rated 12V, 5A or 60W output.
• Verify terminal markings and polarity before switching on.
• Keep out of reach of children.

Frequently Asked Questions

What output does this power supply provide?

It provides 12V DC with a maximum output of 5A and 60W.

Can it be used with any 12V device?

It can be used with compatible 12V DC equipment that requires no more than 5A or 60W. Always verify the device specifications and polarity first.

Does it include protection features?

Yes. The packaging lists output over-voltage, over-current, short-circuit and surge protection.

Does it have an indicator light?

Yes. It has an LED output indicator.

Can it be installed outdoors?

The unit should not be directly exposed to rain or moisture. Outdoor use requires a suitably rated weatherproof enclosure with adequate ventilation.
