TOKOMA 12-Strip Wire Connector Block 30A 380V

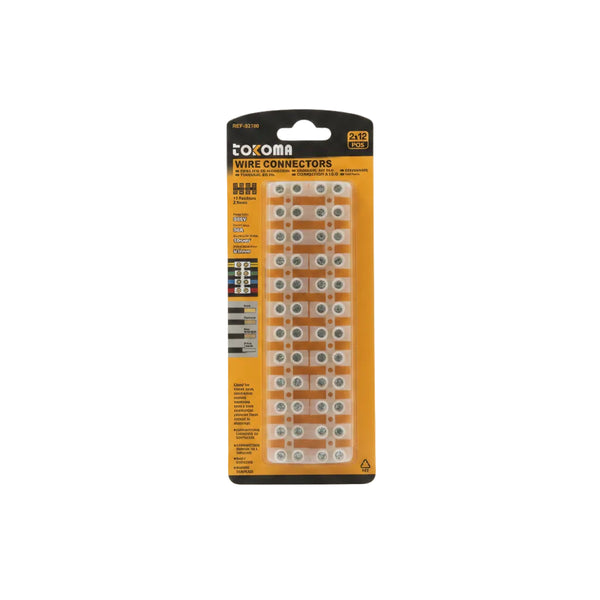

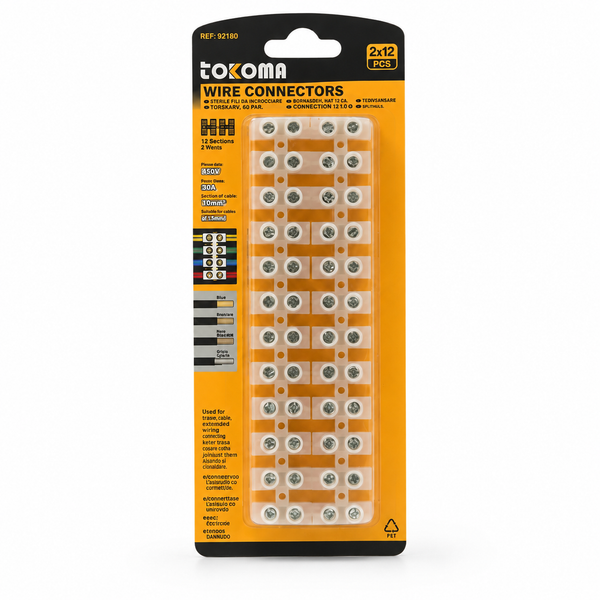

TOKOMA 2-Way 12-Strip Electrical Wire Connector Block – 30A 380V

Product Introduction

The TOKOMA Electrical Wire Connector Block is designed for joining and organising compatible electrical wires securely. It features 12 individual two-way connector sections, allowing wires to be inserted from opposite sides and fastened using screw terminals.

The connector strip can be cut into smaller sections when fewer connections are required, making it suitable for electrical installations, repairs, lighting projects and general wiring applications.

Key Features

• TOKOMA wire connector block
• 12 two-way connector sections
• Screw-terminal connection system
• Rated voltage shown: 380V
• Rated current shown: 30A
• Suitable for wire sizes up to 10mm²
• Transparent insulated housing
• Metal internal terminal inserts
• Can be cut into individual connector sections
• Supplied in retail blister packaging
• Reference number: 92180
• Reusable for compatible wiring projects

Benefits

• Creates secure and organised wire connections
• Screw terminals help hold wires firmly in place
• Transparent housing allows easier visual inspection
• Individual sections can be separated as needed
• Suitable for installation, maintenance and repair work
• Helps insulate connection points when correctly installed
• Convenient multi-connector strip reduces the need for separate terminals

What’s Included

• 1 × TOKOMA 12-section two-way wire connector strip
• Retail blister packaging

How to Use

• Switch off and isolate the electrical power supply.
• Select the required connector section.
• Cut the strip carefully if an individual section is needed.
• Strip a suitable amount of insulation from each wire.
• Loosen the terminal screws.
• Insert the wires into the opposite sides of the connector.
• Tighten the screws firmly without damaging the conductors.
• Check that no exposed conductor remains outside the insulated housing.
• Have the connection inspected by a qualified electrician where required.

Compatibility / Applications

Suitable for compatible:

• Household electrical wiring
• Lighting installations
• Junction and distribution connections
• Electrical repair projects
• Appliance and equipment wiring
• Control panels
• Workshop applications
• DIY electrical projects within the rated specifications

Care & Maintenance

• Store in a clean, dry location.
• Keep away from excessive heat and moisture.
• Inspect the housing and terminals before installation.
• Do not use connectors that are cracked, melted, corroded or damaged.
• Periodically check installed connections where appropriate.
• Keep unused connectors inside their packaging.

Specifications

• Brand: TOKOMA
• Product type: Electrical wire connector block
• Reference number: 92180
• Connector configuration: Two-way
• Number of sections: 12
• Total connection openings: 24
• Rated voltage shown: 380V
• Rated current shown: 30A
• Maximum wire size shown: 10mm²
• Connection method: Screw terminal
• Housing colour: Transparent
• Terminal material: Metal
• Packaging type: Retail blister pack
• Barcode: 6002148821985

Safety Information

• Always disconnect the electrical supply before installation.
• Electrical work should be performed by a qualified electrician.
• Use only with compatible wire sizes and within the stated ratings.
• Ensure every screw is tightened securely before restoring power.
• Do not leave exposed copper outside the connector housing.
• Do not use in wet or outdoor environments unless installed inside a suitably rated enclosure.
• Keep out of reach of children.
• Follow all applicable South African electrical regulations.

Frequently Asked Questions

Can the connector strip be cut into smaller sections?
Yes. The strip can be carefully divided when fewer connector sections are required.

How many connector sections are included?
The strip contains 12 two-way connector sections with 24 wire-entry openings in total.

How are the wires secured?
Each wire is inserted into the appropriate opening and held in place by tightening the terminal screw.

Can it be used for household wiring?
It may be used for compatible household wiring applications when installed within its ratings by a qualified electrician.

Is the connector reusable?
Yes, it can generally be reused if the housing, screws and internal terminals remain undamaged.
